Installation and adjustment | Type
|
|
| Technical data | |||

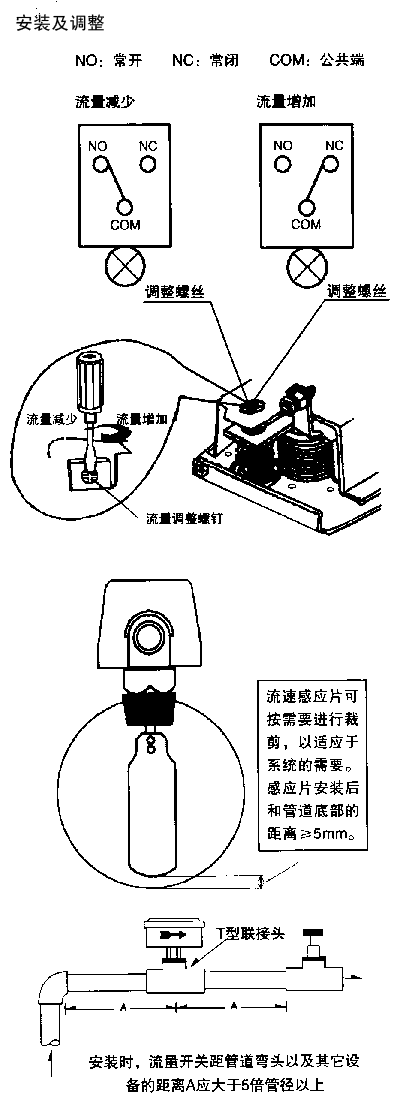

| Installation and adjustment steps 1, and T-diameter connected to the first select the appropriate velocity sensor chip (may be inappropriate for the cut, the sensor chip and control the distance between the bottom of ≥ 5MM); 2, removed the shell flow switches, put appropriate flow switch installed in the T-head and secured connectivity (flow direction and attention to the vertical sensor chip); 3. Flow Adjustment screw adjustment, increased traffic flow clockwise direction, counterclockwise to reduce the flow (minimum value set at the factory); 4. Upon completion of the installation of the action switches to check whether the normal flow, once is unable to answer, Please check whether the flow is less than the minimum value set.
|
|||
