Name
|

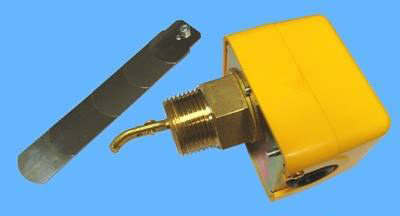

WRS-1H | Type
|
WRS-1H |
| Technical data | |||
| Working pressure：1MPa(10Bar) Pressure resistance limit：1.6Mpa(1.6Bar) Dielectric resistance：DC500V Megameter 100M Omega above Electric strength: AC1500V, lasted 1min, no penetrating Electronic contact life: Above 200,000 Ripple life: Above 200,000 cycles Working conditions: -10°C - 50°C, relative humidity <= 85% dustlessness environment Protection standard: IP53 Working voltage: AC0 - 250V, DC0 - 230V Selecting and matching the speed of flow piece: 35th, 60, 88, 125, 150mm Electronic contact capacity AC exchange: (50/60HZ): 0 - 125V (15A), 125A - 250V (10A) DC direct current: 0 - 115V (0.3A), 115 - 230V (0.15A) |
|||
