Name

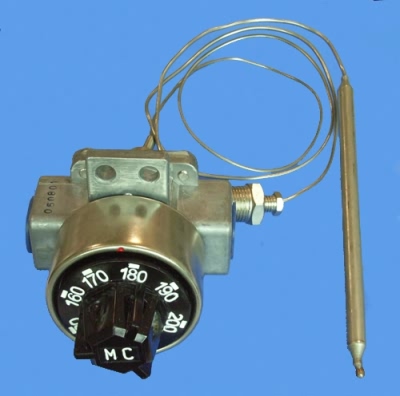

 MHF22X3 1
Type
 MHF22X3
Technical data
Technical Specification
Applicaton conditions:
a、Environment temperature: -20°C - +60°C
b、Suitable gas: Liquified petroleum gas, natural gas, artificial coal gas
c、Working pressure: Below 4.2kpa
d、Temperature sensing tube permission maximum temperature: 280°C
e、Temperature sensing tube placement: it must be placed horizontally, moreover must be lower than valve body
f、Temperature sensing tube and the capillary vessel does not have to be curving, the coiling, rebates, the
capillary vessel smallest curving diameter is 500mmPerformance:
a、Enactment temperature precision:±5℃
b、Outside divulges: Under the 5kpa barometric pressure, collects leaks are at least 30ml/h
c、The maximum knob corner: 330°C±5℃,
d、the knob counter anti-clockwise revolves then the temperature value increases
e、Controling temperature 160°C - 220°C
